Suspension arm systems: surgical lights

Our VALiA suspension arm systems for lights are based on a modular, highly flexible building block principle. This gives us the ability to meet the specific needs of your application. We are able to accommodate various quantities of lights, load capacities and electrical systems.

Was macht VALiA aus?

Movement

  • Unmatched reach up to 3200 mm (126 in) to optimally position lights in the largest hybrid rooms
  • Exceptional vertical range of motion up to 1288 mm (51 in), -70°/+45°. Ideal for seated procedures or general surgeries
  • Drift-free positional stability thanks to the concave-convex brake screw

Flexibility

  • Excellent cable management; DVI connectors can be routed through spring arms & c-ext. arms.
  • Expandable, future medical display solutions (up to 1 x 42'' / 2 x 32'')
  • Large, adjustable load range of each individual spring (1.5-21 kg | 18-40 kg)
  • Standardized sockets for easy exchange of devices
  • State-of-the-art video transmission & future-ready 4K video transmission

Safety

  • Click & SAFE snap reliability: joints engage with a clicking sound and ensure an absolutely secure joint connection
  • Revolutionary comfort stop technology minimizes downtime
  • Convenient height stop system prevents collisions with the ceiling
  • Robust central axis and spring arm covers conceal screws ensuring safety and hygiene

VALiA S1

Spring arm load: up to 21 kg (46 lbs)
Arm reach: up to 2100 mm (83 in)
Electrical: 3-pin, HDC, with stop (standard cable package)

VALiA S2

Spring arm load: up to 21 kg (46 lbs)
Arm reach: up to 2100 mm (83 in)
Electrical: 3-pin, HDC, with stop (standard cable package)

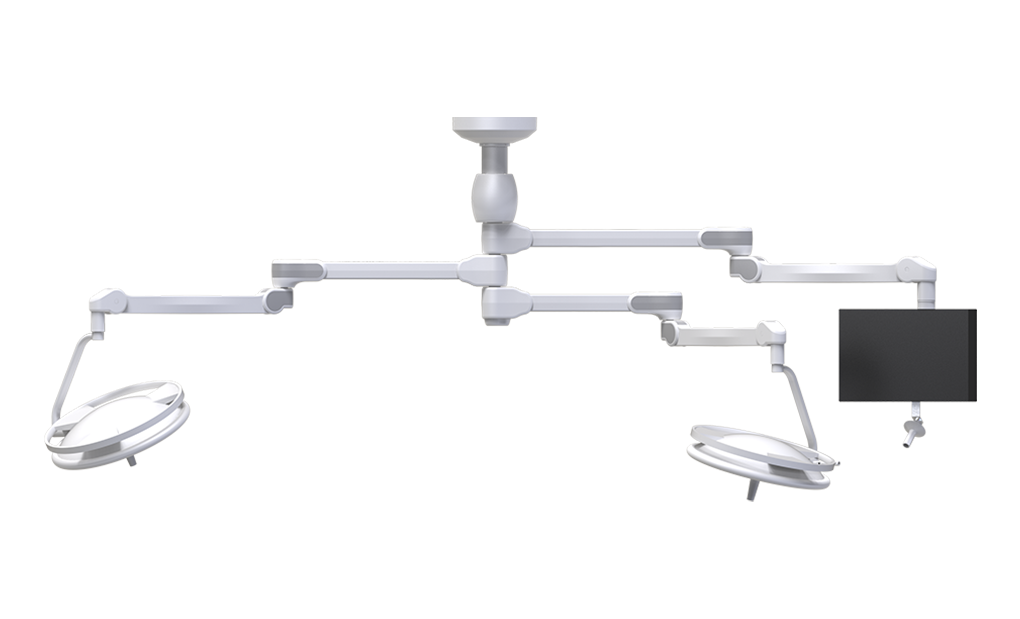

VALiA S3

Spring arm load: up to 21 kg (46 lbs)
Arm reach: up to 2100 mm (83 in)
Electrical: 3-pin, HDC, with stop (standard cable package)

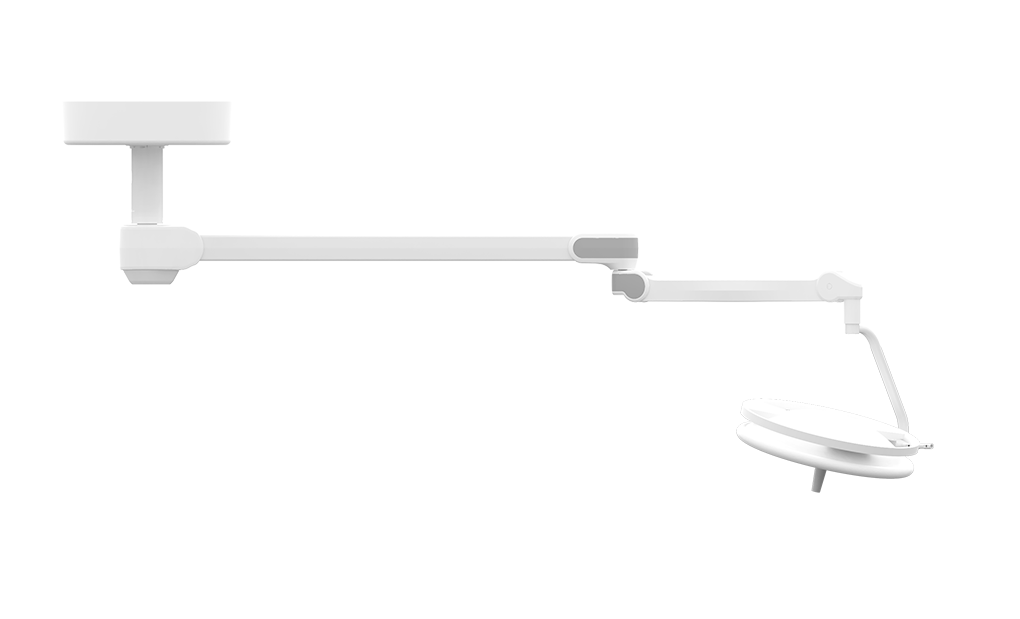

VALiA C1

Spring arm load: up to 40 kg (88 lbs)
Arm reach: up to 3200 mm (126 in)
Electrical: 3-pin, HDC, with stop (comfort cable package)

VALiA C1S1

Spring arm load: Up to 40 kg (88 lbs)
Arm reach: Up to 3200 mm (126 in)
Electrical: 3-pin, HDC, with stop (comfort cable

VALiA C1S2

Spring arm load: Up to 40 kg (88 lbs)
Arm reach: Up to 3200 mm (126 in)
Electrical: 3-pin, HDC, with stop (comfort cable package)

VALiA C2S2

Spring arm load: Up to 40 kg (88 lbs)
Arm reach: Up to 2100 mm (83 in)
Electrical: 3-pin, HDC, with stop (comfort cable package)
